Activity 5


                                                                                  Estimated Time: 15 Minutes

↠1.1 Objective

  • In this Activity 5, the installed app from previous activity is modified to connect with Python web server running on local computer and login credentials are monitored on Logcat window.

↠1.2 Description

In this Activity, we will modify settings inside app to connect with python web server setup on local system and monitor the logs using "Logcat" on Android Studio.


↠1.3 Instructions

  • Step 1: Leave the python web server running on port 8080. Do not disturb the server.

  • Step 2: Open new command prompt window and check your system ip address with command "ipconfig". Make a note of IPv4 address in the ipconfig command output.

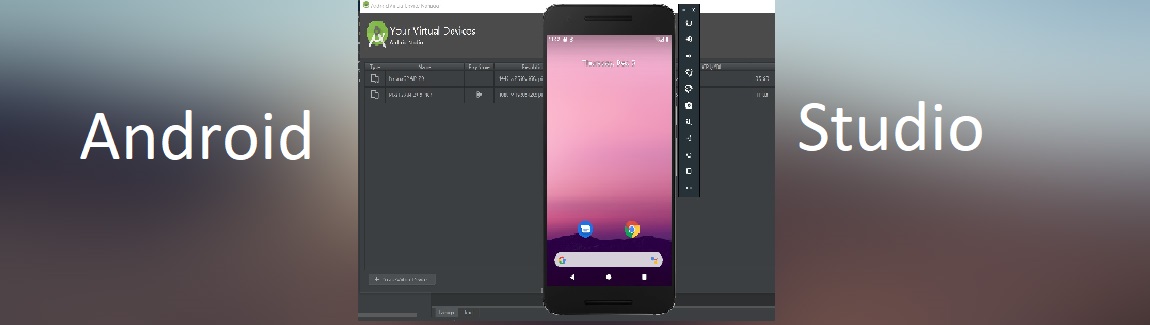

  • Step 3: Now go to android studio -> AVD (Android Virtual Device) -> Run Device in emulator -> Open app (which is installed through login.apk file)

  • Step 4: Inside the app, at the lower right corner, click the three-dot icon.

  • Step 5: Click Reset, Click the three-dot icon again.

  • Step 6: Click "Preferences" -> Click "Bank Service Address" -> Put your system ip address identified from Step2 here.

    •    
  • Step 7: Similarly go to "Preferences" page again -> Click "HTTP Port" -> Set port as 8080

  • Step 8: Now go to app login page (start page) and enter credentials. Default account credentials are provided on the same login page.

  • Step 9: When you enter credentials and click "Login" button, you can see logs in "Logcat" window.

    •    
  • Step 10: Take a screenshot of logs in "Logcat" window showing the credentials in plaintext format. Please send the screenshot to Professor through mail for submission.


↠1.4★ ★ ★ Self-Assessment ★ ★ ★

Please complete the following self-assessment over Activity 5
